Cell board, prismatic, multiple cells

1PMxxxx, Cell Boards for multiple prismatic cells

Each of these cell boards handles a number of prismatic cells (as opposed to a 1PR0xxx, which handles a single cell per board).

Description

• Custom made to fit most sizes of large prismatic cells
• Placed horizontally on top of cells, between the terminals
• Connected to cells through ring terminals
• One Cell Board per cell (or set of multiple cells in parallel)
• Flat shape: doesn't extend past current carrying bolts
• These cell boards require a BMS controller to form a complete BMS

Applications

These cell boards can be used with a variety of prismatic cells, in a variety of configurations.

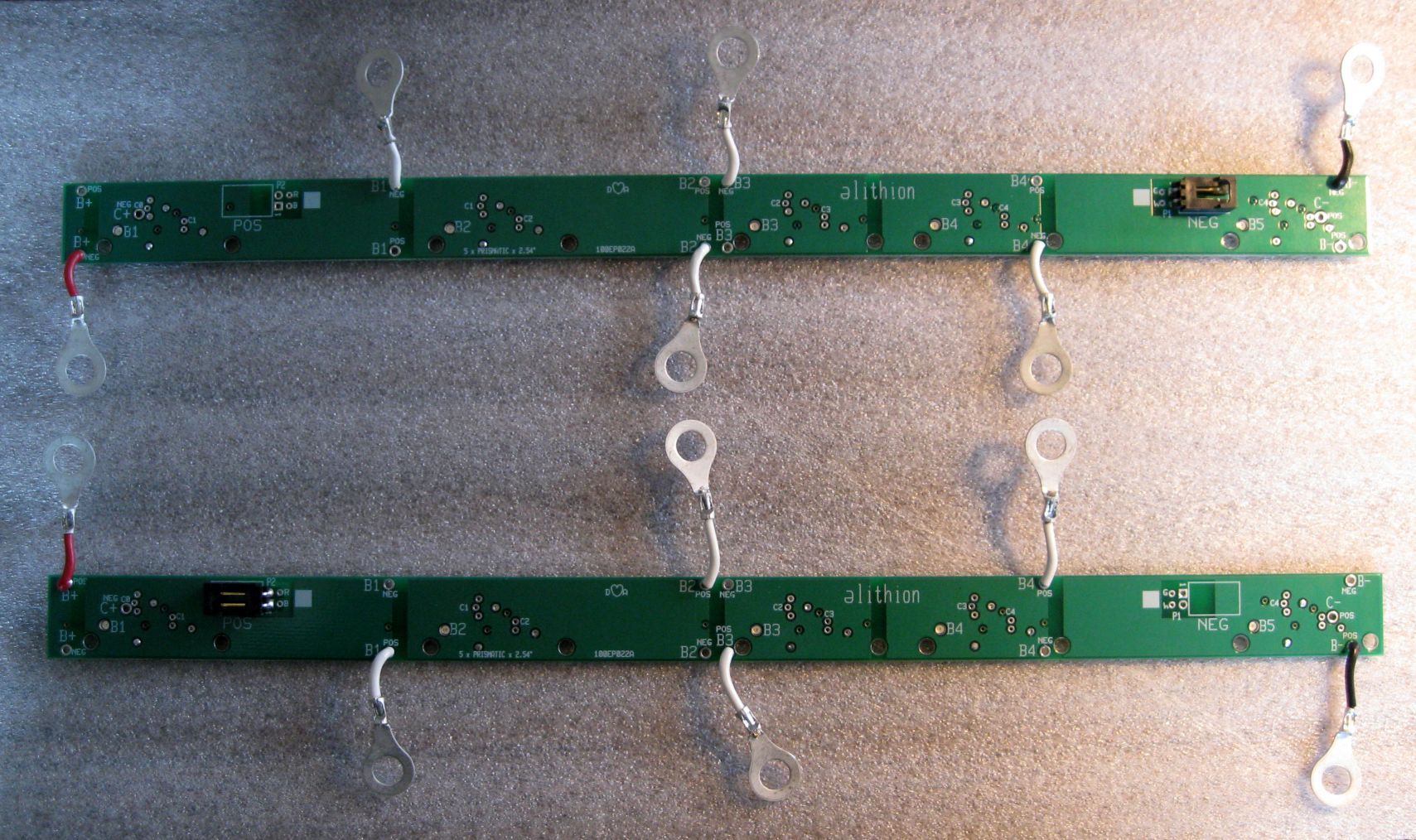

Cell boards for 5 each, K2 prismatic batteries.
Click to enlarge.

Installation is straightforward:

1. Mount cell board on area between cell terminals
2. Mount cell board's ring terminals on the cells' terminals

Compatibility

These standard Cell Boards are compatible with a wide range of prismatic cells available on the market today, including:

Brand	Model
Aleees	SE40AHA - 46 x 116 x 182, 64, 40 Ah SE70AHA - 61 x 115 x 212, 60 70 Ah SE100AHA - 67 x 142 x 217, 81, 100 Ah SE120AHA - ?, 120 Ah SE180AHA - 71 x 182 x 280, 106, 180 Ah SE200AHA - 46 x 116 x 182, 200 Ah SE300AHA - 55 x 365 x 298, 210, 300 Ah SE400AHA - 71 x 450 x 278, 400 Ah
Gold Peak	GoldPeak GP18EVLF GoldPeak GP30EVLF GoldPeak GP45EVLF
Huanyu	HYP-3.2V-100Ah - 280 x 46 x 182 - ?, 100 Ah
K2	LFP165HES, 51 Ah, energy LFP165HPS, 41 Ah, power LFP300EVS, 90 Ah, energy LFP300HES, 90 Ah, energy
Shandong HiPower	50 Ah 42 x 151 x 178 - 84.5, 50 Ah 100 Ah 50 x 162 x 270 - 97, 100 Ah 200 Ah 57 x 220 x 335 - ??, 200 Ah
Sky Energy	SE40AHA 116x185x46 - 64, 40 Ah SE60AHA 115x215x61 - 60, 60 Ah SE100AHA 142x220x67 - 81, 100 Ah SE120AHA 182x283x57 - 100, 120 Ah SE180AHA 182x283x71 - 106, 180 Ah
Tenergy	30210 - 182 x 46 x 280 - 100 Ah 30211 - 183 x 82 x 280 - 200 Ah
Thundersky	TS-LFP40AHA 116 x 190 x 46 - 60, 40 Ah TS-LFP60AHA 115 x 215 x 61 - 60, 60 Ah TS-LFP90AHA 145 x 220 x 68 - 83, 90 Ah TS-LFP100AHA 145 x 220 x 68 - 83, 100 Ah TS-LFP150AHA 182 x 279 x 71 - 106, 150 Ah TS-LFP160AHA 182 x 279 x 71 - 106, 160 Ah TS-LFP200AHA 360.6 x 256.4 x 55.5 - 210, 200 Ah TS-LFP260AHA 360.6 x 283 x 55.5 - 210, 260 Ah TS-LFP300AHA 363 x 305.7 x 55.5 - 210, 300 Ah TS-LFP400AHA 449 x 282 x 70 - 240, 400 Ah TS-LFP800AHA 850 x 288 x 71, 800 Ah

Specifications

General specifications (for detailed specifications, please see the Lithiumate™ Manual).

Electrical Specifications

Mechanical Specifications

Selection

Banking

A bank can be handled in one of two ways:

• Full bank: a single cell board handles the entire bank
• Split bank: 2 or more cell boards handle the bank:
  • A positive cell board on its most positive cell
  • A negative cell board on its most negative cell
  • Zero or more mid-bank cell boards on any remaining cells

Bank	Type	Range	Cable to BMS board	Wires to adjacent cell boards
Full	Full-bank	Handles the entire bank	Through two 2-pin connectors	N.A.
Split	Positive End	Handles the post positive portion of the bank	Red and black wires through a 2-pin connector	A single wire to the next cell board
	Mid-bank	Handles a central portion of the bank	N.A.	Two single wires, one to the previous cell board, one to the next one
	Negative End	Handles the post negative portion of the bank	White and green wires through a 2-pin connector	A single wire to the previous cell board

Specifically:

• When a single cell board handles the entire bank, a "Full bank" cell board is used
• When 2 cell boards handle a bank, a "Positive end" cell board is used at the most positive end of the bank, and a "Negative end" one is used at the most negative end of the bank
• When 3 cell boards handle a bank, a "Positive end" cell board is used at the positive end, a "Mid bank" one is used in the middle, and a "Negative end" one is used at the negative end
• When n cell boards handle a bank, a "Positive end" cell board is used at the positive end, n-2 "Mid bank" ones are used in the middle, and a "Negative end" one is used at the negative end

Connectors

Right angle connectors are standard on full bank and end boards. Cell boards with straight connectors or no connectors are also available

Part numbering

Part number: 1PM1234B:

• 1 = Cell Board
• PM = prismatic multiple
• 12 = Number of cells in series (available: 2 to 16)
• 34 = Centerline spacing between cells
• B = full bank (available: B = full bank; M = mid-bank; P = positive end; N = negative end)

Ordering

Prices

The price of these Cell Boards is proportional to the number of cells in series they handle, plus some cost for the components at the end of the bank, and depends on the size of the ring terminals.

This table gives approximate prices. To get real prices, see below.

No of cells in series	Full-bank	Mid-bank	Negative end	Positive end
2	$ 31	$ 25	$ 28	$ 28
3	$ 43	$ 37	$ 40	$ 40
4	$ 55	$ 49	$ 52	$ 52
5	$ 67	$ 61	$ 64	$ 64
6	$ 79	$ 73	$ 76	$ 76
7	$ 91	$ 85	$ 88	$ 88
8	$ 103	$ 97	$ 100	$ 100
9	$ 115	$ 109	$ 112	$ 112
10	$ 127	$ 121	$ 124	$ 124
11	$ 139	$ 133	$ 136	$ 136
12	$ 151	$ 145	$ 148	$ 148
13	$ 163	$ 157	$ 160	$ 160
14	$ 175	$ 169	$ 172	$ 172
15	$ 187	$ 181	$ 184	$ 184
16	$ 199	$ 193	$ 196	$ 196

There is an additional $ 800 NRE charge for these cell boards, for PCB layout and manufacture set-up.

As these cell boards are made to order, to order please contact us first.

Then, to order, please get a quote entering data as if you were ordering standard cells, but also click the "Custom" checkbox (in section 3), to add $ 800 NRE charges to the total.
