Cell board, pouch, single cell

1PO0000, standard Cell Boards for pouch cells

Each of these cell boards handles a single pouch cell (as opposed to a 1POxxxx, which handles multiple cells per board).

Description

• Sufficiently flexible to fit most sizes of large pouch cells
• Placed vertically, between cell tabs
• Multiple cell boards are mechanically secured to each other
• Connected to cell tabs through flags
• One Cell Board per cell (or set of multiple cells in parallel)
  • Highest flexibility, as they may be used with any cell arrangement
• Thin: for cells as thin as 4 mm (0.16 ")
• Narrow: for cells with spacing between tabs as little as 21 mm (0.8 ")
• A single communication wire is used between adjacent cells in a bank
• These cell boards require a BMS controller to form a complete BMS

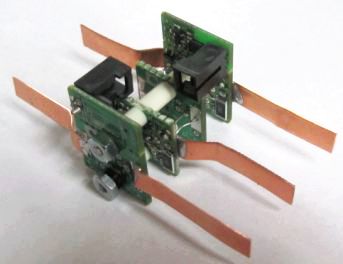

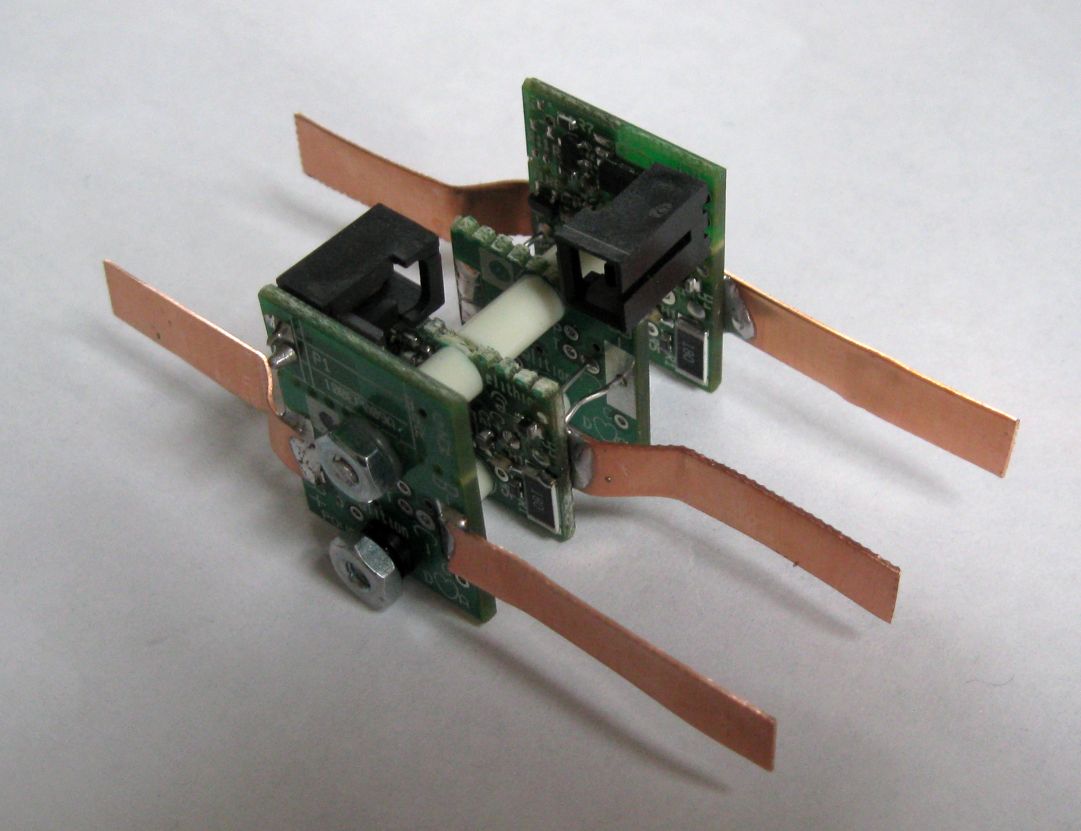

Example of a cell board stack for 4 each, 10 mm thick pouch cells (left) 8 each, 13 mm thick pouch cells (right).
Click to enlarge.

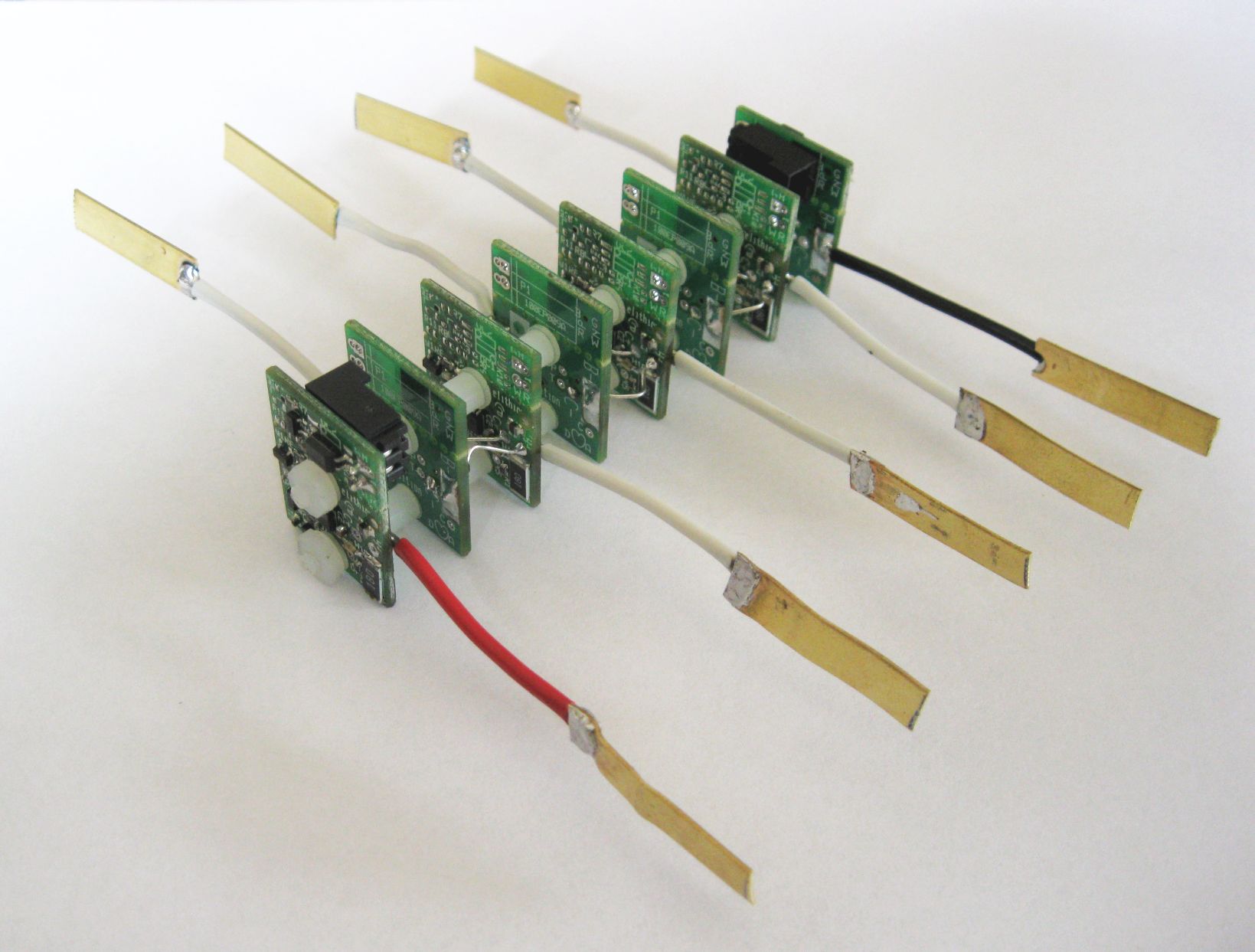

The stack above uses 1 positive end (reverse connector), 2 mids (short version), 1 negative end (reverse connector).
The stack is dropped in the space between cell tabs; the 5 copper flags are clamped to the cells' tabs.

Applications

These cell boards can be used with a variety of pouch cells.

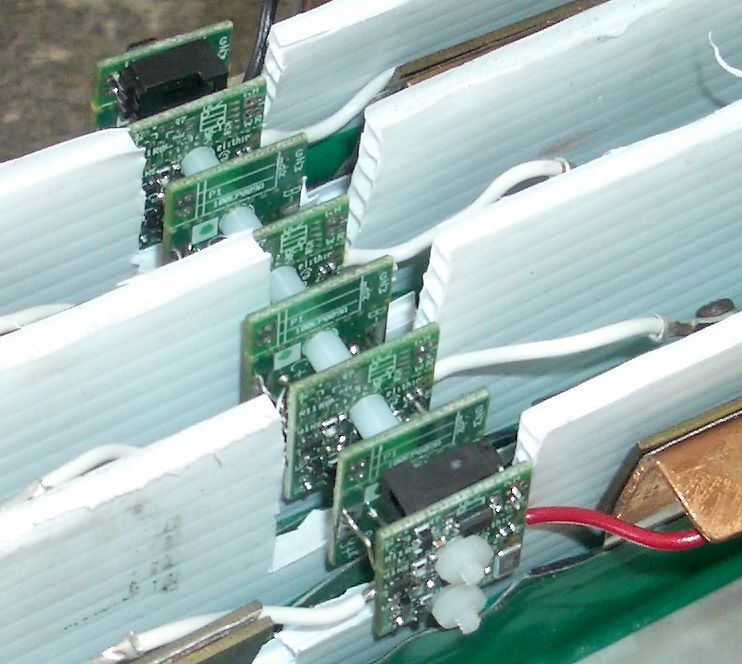

Cell boards placed between cell tabs.

Installation is straightforward, though be forewarned that it requires significantly more time, additional parts and skill than other Lithiumate cell boards:

1. Place pouch cells in a stack, with alternating polarities
2. Prepare a stack of cell boards, mounted together using spacers to match the pitch of the cells
3. Wire the cell boards together, adding flags for the cell connections
4. Drop the assembly in the area between cell tabs, allowing the cell board's flags to sit between cell tabs
5. Clamp the cell tabs together, to form a series connection, as well as connecting to the cell boards' flags

For more information, see the installation instructions.

Compatibility

These standard Cell Boards are compatible with a wide range of pouch cells available on the market today, including:

• Amperex
• Compact Power / LG Chem
• EiG
• Electrovaya
• Kokam
• Optimum
• PHET
• Tenergy

Specifications

General specifications (for detailed specifications, please see the Lithiumate™ Manual).

Electrical Specifications

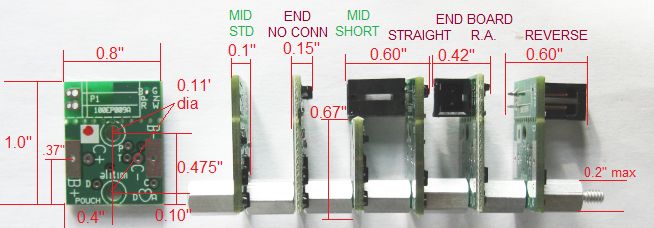

Mechanical Specifications

Selection

Banking

Each bank requires a positive cell board on its most positive cell, a negative cell board on its most negative cell, and mid-bank cell boards in the remaining cells.
(The automatic quote form will select the correct number of each type of board for you.)

Connectors

In order to offer the greatest flexibility, end boards come standard without a connector on them, though 2 loose connectors are included for each: a straight connector and a right angle connector.
End boards with a connector already soldered, of either type, and placed on either side, are available with quick turnaround.

Part numbering

Part number: 1PO0000M:

• 1 = Cell Board
• PO = Pouch
• 0000 = pitch: n.a.
• M = mid bank (available:M = mid-bank; P = positive end; N = negative end)

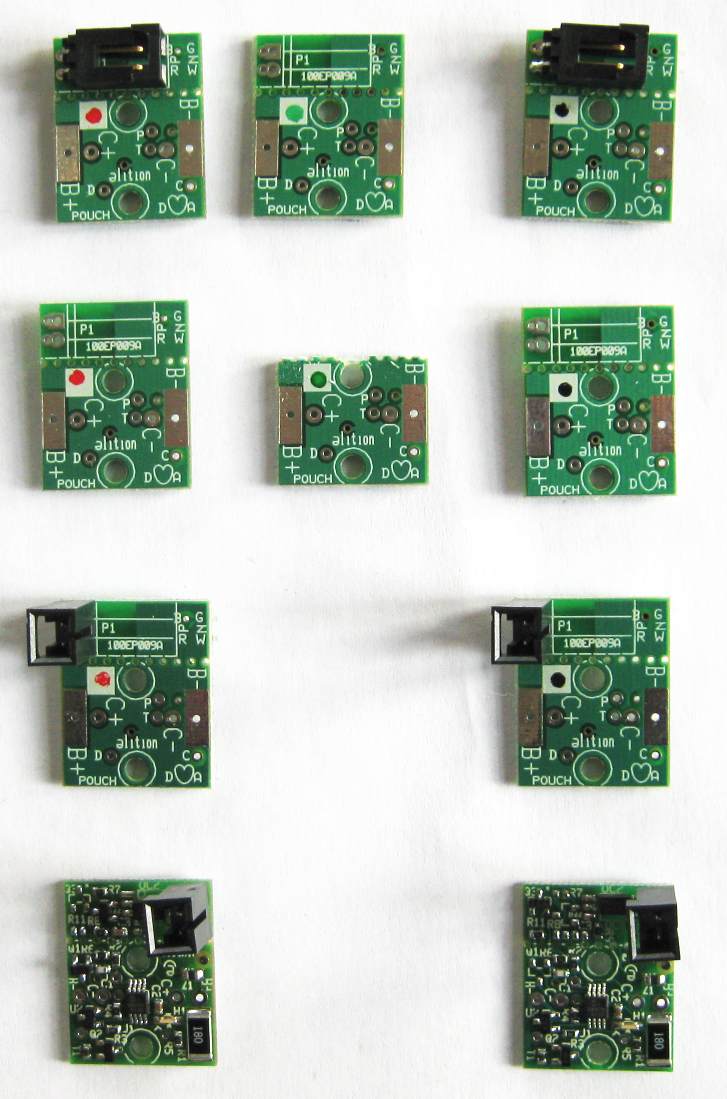

Models

Parts in bold are stocked.
Click on a picture to enlarge.

Positive end					Mid-bank		Negative end
loose connectors*	no connector	r.a. connector	straight connector	reverse connector	standard	short	loose connectors*	no connector	r.a. connector	straight connector	reverse connector
1PO0000P	Special order Or you can make it yourself from a 1PO0000P				1PO0000M	Special order Or make from a 1PO0000M	1PO0000N	Special order Or you can make it yourself from a 1PO0000N
$ 8					$ 6		$ 8

*) Comes with 2 loose connectors (1 straight, 1 right angle), for you to use as appropriate.

Ordering

Prices are listed in the model table, above.

Check stock.

To order, please get a quote.
