Cell board, pouch, multiple cells

1POxxxx, Cell Boards for multiple, stacked pouch cells

Pouch cell multiple pouch cells with cell board Multiple pouch cell board Each of these cell boards handles a number of pouch cells
(as opposed to a 1PO0000, which handles a single cell per board).
back to topDescription
  • Custom made to fit most sizes of large pouch cells
  • Contains cell board electronics, connects cells together
  • Placed horizontally, cell tabs are slipped into PCB, soldered to PCB
  • One Cell Board per a group of cells in series (and, if required, in parallel as well)
  • Compact: for cells as thin as 10 mm
  • Narrow: for cells with spacing between tabs as little as 20 mm
  • These cell boards require a BMS controller to form a complete BMS
back to topApplications

These cell boards can be used with a variety of pouch cells, in a variety of configurations.

Multiple pouch cell boards in an application

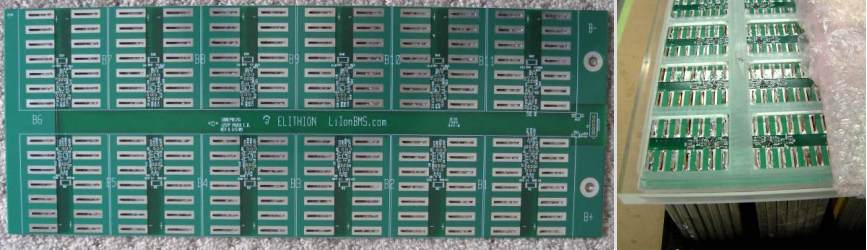

Custom cell board for 12 cells in series, 7 in parallel, full bank (left); cell board installed (right).

Installation is straightforward:

  1. Slip pouch cells in PCB and solder their tabs to the PCB
  2. If desired, also clamp the cell tabs together, to form a lower-resistance series connection
back to topCompatibility

These standard Cell Boards are compatible with a wide range of pouch cells available on the market today, including:

  • Amperex
  • Compact Power / LG Chem
  • EiG
  • Electrovaya
  • Kokam
  • Optimum
  • PHET
  • Tenergy
back to topSpecifications

General specifications (for detailed specifications, please see the Lithiumate™ Manual).

Electrical Specifications anchor
Symbol Item Conditions Min Nom Max Units
Vrange Cell voltage sensing range - 2.09 - 4.54 V
Vaccur Cell voltage sensing accuracy Within Vrange - ±10 ±15 mV
Isply Cell load current Stand-by - - 2.0 uA
Active,
1-reading / sec
- 1.5 2.0 mA
Balancing - 200 - mA
VISOL Isolation voltage End cell boards
Between battery & low voltage
- 2500 - V
Mechanical Specifications anchor
Item Dimensions
Thickness w/components 0.071" / 1.79 mm
Connector thickness, right angle 0.27" / 6.8 mm
back to topSelection
Banking anchor

A bank can be handled in one of two ways:

  • Full bank: a single cell board handles the entire bank
  • Split bank: 2 or more cell boards handle the bank:
    • A positive cell board on its most positive cell
    • A negative cell board on its most negative cell
    • Zero or more mid-bank cell boards on any remaining cells
Bank Type Range Cable to
BMS board
Wires to adjacent cell boards
Full Full-bank Handles the entire bank
Range of Full-Bank cell board
Through two 2-pin connectors N.A.
Split Positive End Handles the post positive portion of the bank
Range of Positive-End cell board
Red and black wires through a 2-pin connector A single wire to the next cell board
Mid-bank Handles a central portion of the bank
Range of Mid-Bank cell board
N.A. Two single wires, one to the previous cell board, one to the next one
Negative End Handles the post negative portion of the bank
Range of Negative-End cell board
White and green wires through a 2-pin connector A single wire to the previous cell board

Specifically:

  • When a single cell board handles the entire bank, a "Full bank" cell board is used
  • When 2 cell boards handle a bank, a "Positive end" cell board is used at the most positive end of the bank, and a "Negative end" one is used at the most negative end of the bank
  • When 3 cell boards handle a bank, a "Positive end" cell board is used at the positive end, a "Mid bank" one is used in the middle, and a "Negative end" one is used at the negative end
  • When n cell boards handle a bank, a "Positive end" cell board is used at the positive end, n-2 "Mid bank" ones are used in the middle, and a "Negative end" one is used at the negative end
Connectors anchor

Right angle connectors are standard on full bank and end boards. Cell boards with straight connectors or no connectors are also available

Part numbering anchor

Part number: 1PO1234B:

  • 1 = Cell Board
  • PO = Pouch
  • 12 = Number of cells in series (available: 2 to 16)
  • 34 = Assigned by Elithion for each custom board
  • B = full bank (available: B = full bank; M = mid-bank; P = positive end; N = negative end)
back to topOrdering
Prices anchor

The price of these Cell Boards is proportional to the number of cells in series they handle, plus some cost for the components at the end of the bank.
No of cells
in series
Full-bank Mid-bank Negative end Positive end
2 $ 31 $ 25 $ 28 $ 28
3 $ 43 $ 37 $ 40 $ 40
4 $ 55 $ 49 $ 52 $ 52
5 $ 67 $ 61 $ 64 $ 64
6 $ 79 $ 73 $ 76 $ 76
7 $ 91 $ 85 $ 88 $ 88
8 $ 103 $ 97 $ 100 $ 100
9 $ 115 $ 109 $ 112 $ 112
10 $ 127 $ 121 $ 124 $ 124
11 $ 139 $ 133 $ 136 $ 136
12 $ 151 $ 145 $ 148 $ 148
13 $ 163 $ 157 $ 160 $ 160
14 $ 175 $ 169 $ 172 $ 172
15 $ 187 $ 181 $ 184 $ 184
16 $ 199 $ 193 $ 196 $ 196

There is an additional $ 800 NRE charge for these cell boards, for PCB layout and manufacture set-up.

As these cell boards are made to order, to order please contact us.
