Cell board, generic, single cell

1PR0000, generic, standard Cell Board for single cells

Single-cell prismatic cell board, without ring terminals, without communication wires. Each of these cell boards handles a single cell, and may be adapted to work in non-standard applications.

Tip: the following single-cell cell boards may also be adapted to work in non-standard applications.

Picture	Part number	Description
	1PO0000	Single-cell pouch cell board, standard
	1SC0100	Single-cell small cylindrical cell board, standard

Description

• One Cell Board per cell (or set of multiple cells in parallel)
  • Highest flexibility, as they may be used with any cell arrangement
• Flat shape
• A single communication wire is used between adjacent cells in a bank
• These cell boards require a BMS controller to form a complete BMS

Applications

These cell boards can be adapted to work with a variety of cells.

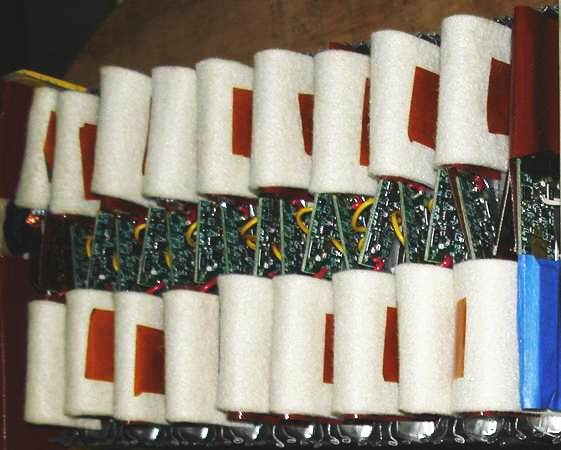

Generic cell boards adapted to work in with pouch cells, placed between cell tabs.

Specifications

General specifications (for detailed specifications, please see the Lithiumate™ Manual).

Electrical Specifications

Mechanical Specifications

Common specifications:

Item	Nom
PCB Width	0.8" / 20.3 mm
PCB Length	1.4" / 35.56 mm
Overall height, mid-bank board	0.3" / 7.5 mm
Overall height, end board w/ right angle connector	0.47" / 12 mm
Slots for ring terminal	For 8 AWG terminal 2 x 0.050 x 0.350", 0.235" apart 2 x 1.27 x 8.9 mm, 5.97 mm apart
Hole for wire to ring terminal	For 18 AWG wire 0.052" ID 1.3 mm ID

Selection

Banking

Each bank requires a positive cell board on its most positive cell, a negative cell board on its most negative cell, and mid-bank cell boards in the remaining cells.
(The automatic quote form will select the correct number of each type of board for you.)

Connectors

Right angle connectors are standard on full bank and end boards. Versions with straight connectors or without connectors are available with quick turnaround.

Part numbering

Part number: 1PR0000M:

• 1 = Cell Board
• PR = Prismatic
• 0000 = center-to-center spacing: not applicable
• M = mid bank (available:M = mid-bank; P = positive end; N = negative end)

Models

Parts in bold are stocked.
Click on a picture to enlarge.

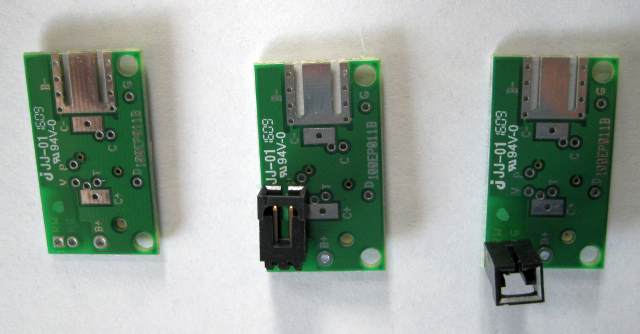

Positive end	Mid-bank	Negative end
r.a. conn		r.a. conn
1PR0000P $ 8	1PR0000M $ 6	1PR0000N $ 8

Ordering

Prices are listed in the model table, above.

Check stock.

To order, please get a quote.
