Cell board, prismatic, single cell

1PR0xxx, standard Cell Boards for prismatic cells

Each of these cell boards handles a single prismatic cell (as opposed to a 1PM series, which handles multiple cells per board).

Description

• Matched to most sizes of prismatic cells
• Mounted on the top of the cells, through ring terminals
  • Reliable mechanical mounting and direct electrical connection
• One Cell Board per cell (or set of multiple cells in parallel)
  • Highest flexibility, as they may be used with any cell arrangement
• Flat shape: doesn't extend past current carrying bolts
• A single communication wire is used between adjacent cells in a bank
• These cell boards require a BMS controller to form a complete BMS

Applications

These cell boards can be used with a variety of prismatic cells. They are available in various lengths, to accommmodate various terminal spacings.

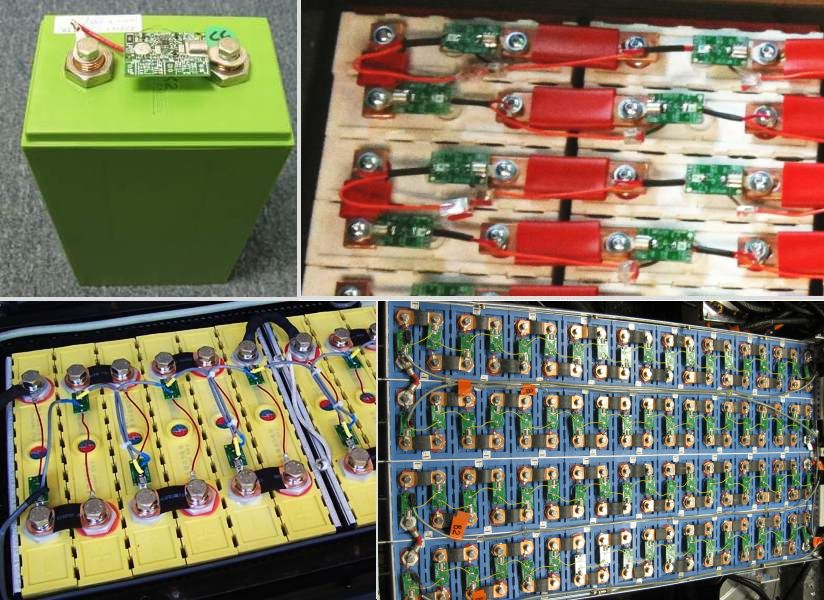

Clockwise from top-left: K2, HiPower 200 Ah, CALB (Sky Energy) 40Ah, Thundersky 400Ah.

Installation is straightforward:

1. Mount cell board's ring terminal on the cell's negative terminal
2. Mount other ring terminal on the cell's positive terminal
3. Connect adjacent cell boards with a communications wire

For more information, see the installation instructions.

Compatibility

These standard Cell Boards are compatible with a wide range of prismatic cells available on the market today, including:

Brand	Model
Aleees	SE40AHA - 46 x 116 x 182, 64, 40 Ah SE70AHA - 61 x 115 x 212, 60 70 Ah SE100AHA - 67 x 142 x 217, 81, 100 Ah SE120AHA - ?, 120 Ah SE180AHA - 71 x 182 x 280, 106, 180 Ah SE200AHA - 46 x 116 x 182, 200 Ah SE300AHA - 55 x 365 x 298, 210, 300 Ah SE400AHA - 71 x 450 x 278, 400 Ah
Huanyu	HYP-3.2V-100Ah - 280 x 46 x 182 - ?, 100 Ah
Tenergy	30210 - 182 x 46 x 280 - 100 Ah 30211 - 183 x 82 x 280 - 200 Ah

Elite Power Solutions
Model	Capacity	Dimensions	Spacing	Bolt size	Cell board
GBS-LFMP60AH	4 x 60 Ah		57	M4.5	1PR0060
GBS-LFMP100AH	4 x 100 Ah
Gold Peak
Model	Capacity	Dimensions	Spacing	Bolt size	Cell board
GP18EVLF	18 Ah	95 x 181 x 18	53		1PR0064
GP30EVLF	30 Ah	95 x 176 x 30	53		1PR0064
GP45EVLF	45 Ah	95 x 225 x 18	53		1PR0064
K2
Model	Capacity	Dimensions	Spacing	Bolt size	Cell board
LFP165EVS	51 Ah	121 x 133 x 81	64	M6	1PR0064
LFP165HES	51 Ah
LFP165HPS	41 Ah
LFP300EVS	90 Ah	121 x 213 x 81
LFP300HES	90 Ah
LFP300HPS	72 Ah
Shandong HiPower
Model	Capacity	Dimensions	Spacing	Bolt size	Cell board
100 Ah	100 Ah	150 x 162 x 270	97	M8	1PR0106
200 Ah	200 Ah	57 x 220 x 335	146	M10	1PR0146
Sky Energy
Model	Capacity	Dimensions	Spacing	Bolt size	Cell board
SE40AHA	40 Ah	116 x 46 x 182	64	M6	1PR0064
SE60AHA	60 Ah	142 x 50 x 220	61	M6	1PR0064
SE100AHA	100 Ah	142 x 67 x 217	81	M8	1PR0106
SE120AHA	120 Ah	182 x 57 x 279	106	M8	1PR0106
SE130AHA	130 Ah	182 x 57 x 279	106	M8	1PR0106
SE160AHA	160 Ah	182 x 283 x 71	106	M8	1PR0106
SE180AHA	180 Ah	182 x 283 x 71	106	M8	1PR0106
SE400AHA	400 Ah	450 x 283 x 71	240	M14	1PR0240
Thundersky
Model	Capacity	Dimensions	Spacing	Bolt size	Cell board
TS-LFP40AHA	40 Ah	116 x 183 x 46	61	M6	1PR0064
TS-LFP60AHA	60 Ah	115 x 203 x 61	61	M6	1PR0064
TS-LFP90AHA	90 Ah	143 x 218 x 61	82	M8	1PR0106
TS-LFP100AHA	100 Ah	145 x 220 x 68	83	M8	1PR0106
TS-LFP100AHA		179 x 218 x 62	106	M8	1PR0106
TS-LFP150AHA	150 Ah	182 x 279 x 71	106	M8	1PR0106
TS-LFP160AHA	160 Ah	182 x 276 x 71	106	M8	1PR0106
TS-LFP160AHA		209 x 280 x 65	102	M8	1PR0106
TS-LFP200AHA	200 Ah	362 x 256 x 55.5	210	M14	1PR0210
TS-LFP200AHA		183 x 280 x 100	106	M8	1PR0106
TS-LFP260AHA	260 Ah	362 x 283 x 55.5	210	M14	1PR0210
TS-LFP300AHA	300 Ah	362 x 306 x 55.5	210	M14	1PR0210
TS-LFP400AHA	400 Ah	461 x 285 x 65	240	M14	1PR0240

Specifications

General specifications (for detailed specifications, please see the Lithiumate™ Manual).

Electrical Specifications

Mechanical Specifications

Common specifications:

Item	Nom
PCB Width	0.8" / 20.3 mm
PCB Length	1.4" / 35.56 mm
Overall height, mid-bank board	0.3" / 7.5 mm
Overall height, end board w/ right angle connector	0.47" / 12 mm
Terminal material	Plated copper
Wire gauge	18 AWG

Specifications particular to each model:

P/N	Terminal center-to-center spacing		Max bolt size	Ring term
	Min	Max 'L'		ID	OD
1PR0060x	2.3" / 58 mm	2.5" / 64 mm	#8, 0.157" / M4	0.173" / 4.4 mm	0.32" / 8.1 mm
1PR0064x		2.5" / 64 mm	1/4" / M6	0.25" / 6.3 mm	0.48" / 12 mm
1PR0106x		4.17" / 106 mm	5/16" / M8	0.312" / 8 mm	0.59" / 15 mm
1PR0146x		5.75" / 146 mm	3/8" = 0.375" / M10	0.390" / 9.9 mm	0.59" / 15 mm
1PR0210x		8.27" / 210 mm	5/8" = 0.625" / M16	0.656" / 16.66 mm	0.125" / 31.75 mm
1PR0240x		9.45" / 240 mm	5/8" = 0.625" / M16	0.656" / 16.66 mm	0.125" / 31.75 mm

Selection

Banking

Each bank requires a positive cell board on its most positive cell, a negative cell board on its most negative cell, and mid-bank cell boards in the remaining cells.
(The automatic quote form will select the correct number of each type of board for you.)

Connectors

Right angle connectors are standard on end boards. Versions with straight connectors or no connectors are available with quick turnaround.

• With right angle connectors - requires a slight extra mounting space beyond the cell bolts
• With straight connectors - requires significant extra mounting space beyond the cell bolts
• Without connectors (cables to the BMS controller are soldered directly to the cell board) - requires no extra space beyond the cell bolts

Part numbering

Part number: 1PR0106M:

• 1 = Cell Board
• PR = Prismatic
• 0106 = maximum center-to-center spacing of cell terminals, in mm (available: 64, 106, 146, 210, 240)
• M = mid bank (available:M = mid-bank; P = positive end; N = negative end)

Models

Parts in bold are stocked.
Click on a picture to enlarge.

Max Terminal spacing	Bolt size	Positive end	Mid-bank	Negative end

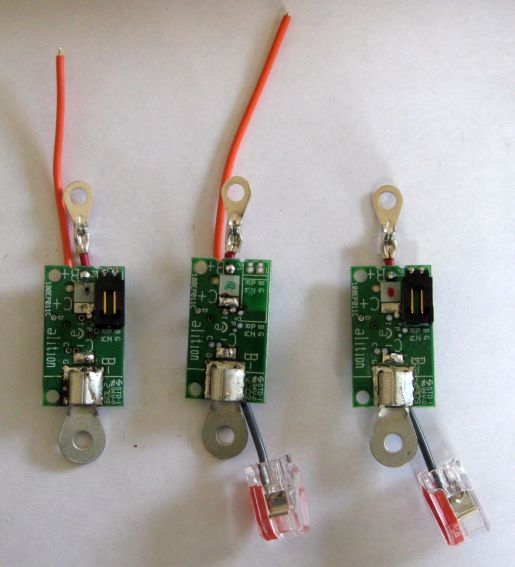

58 mm	M4	1PR0060P $ 9	1PR0060M $ 7	1PR0060N $ 9

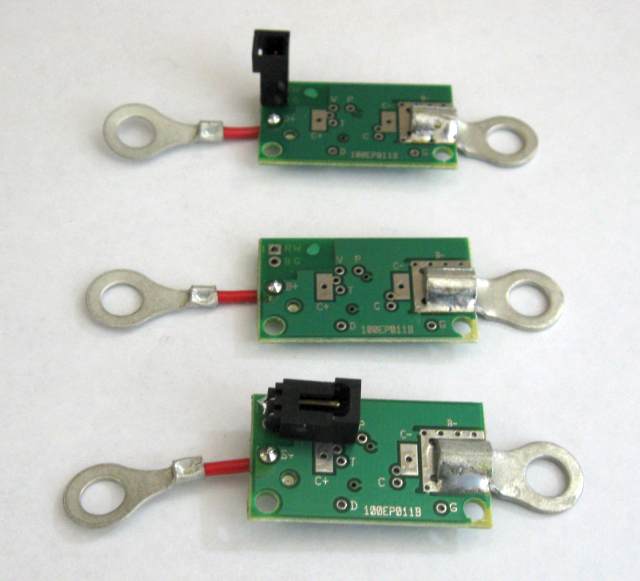

64 mm	M6	1PR0064P $ 9	1PR0064M $ 7	1PR0064N $ 9

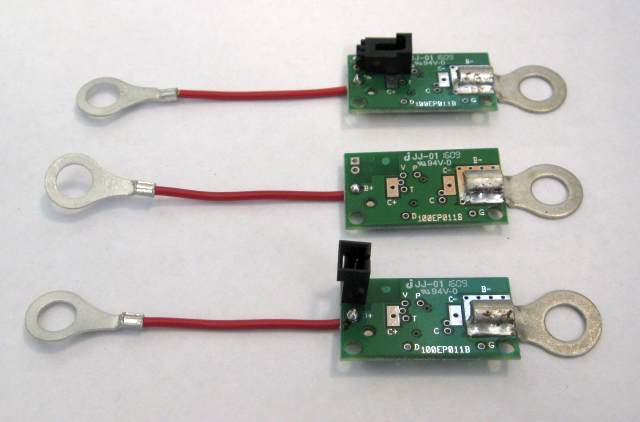

106 mm	M8	1PR0106P $ 10	1PR0106M $ 8	1PR0106N $ 10

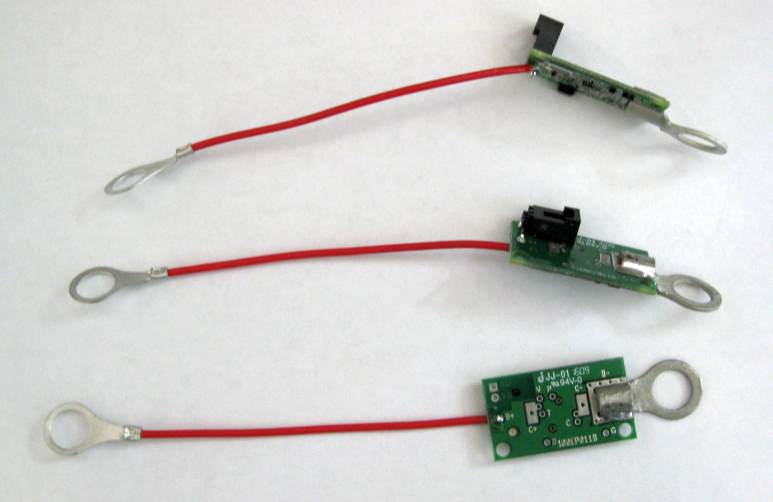

146 mm	M10	1PR0146P $ 10	1PR0146M $ 8	1PR0146N $ 10

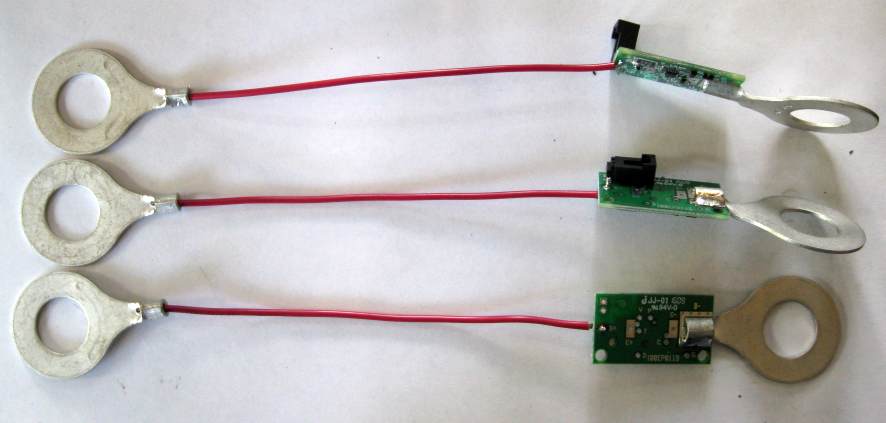

210 mm	M14	1PR0210P $ 13	1PR0210M $ 11	1PR0210N $ 13
240 mm	M14	1PR0240P $ 13	1PR0240M $ 11	1PR0240N $ 13

Ordering

Prices are listed in the model table, above.

Check stock.

To order, please get a quote.
