Cell board, small cylindrical, single cell
1SC0100, standard Cell Boards for a single 18650 and 26650 cell
|
|
|
Each of these cell boards handles a single small cylindrical cell
(as opposed to a 1SCxxxx, which handles multiple cells per board).
|
- Matched to industry standard 18650 and 26650 sizes
- Mounted on the side of the cells, by their welding tabs
- One Cell Board per cell (or set of multiple cells in parallel)
- Highest flexibility, as they may be used with any cell arrangement (though at the cost of slightly more assembly effort, compared to multi-cell cell boards)
- Very thin, components are placed in space between cells: as little as 0.05" is added to battery dimensions
- A single communication wire is used between adjacent cells in a bank
- These cell boards require a BMS controller to form a complete BMS
Single cell board mounted on 2 cells.

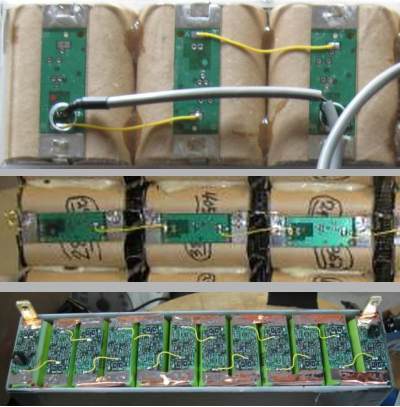

Single boards offer flexibility, as they can be used in a variety of cell arrangements.
Side-by-side, spaced (top), columnar (middle) and side-by-side, adjacent (bottom).
Installation is straightforward, though be forewarned that it requires more skill than other Lithiumate cell boards:
- Place cell board on the cell
- Fold the tabs from the cell down onto the cell board
- Solder the tabs
- Connect adjacent cell boards with a communications wire
For more information, see the installation instructions.
These standard Cell Boards are compatible with a wide range of Li-Ion small cylindrical cells available on the market today, including:
| Brand
| Model
|
| A123
| M1 26650
|
| Advanced Battery Factory
| 18650 and 26650
|
| Aleees
| HIBS 18650E - 18650, energy, 2.7 Ah; HIBS 18650P - 18650, power, 2.4 Ah; HIBS 26650E - 26650, energy, 2.7 Ah; HIBS 26650P - 26650, power, 2.4 Ah
|
| Baoding Fengfan New Energy Co
| IFR18650D30 - 18650, 1.3 Ah; IFR26650D10 - 26650, 3 Ah; IFR26650D20 - 26650, 2.4 Ah
|
| CENS Energy-Tech
| 18650P - 18650, power, 1.1 Ah; 26650P - 26650, power, 2.5 Ah; 26650E - 26650, energy, 3.2 Ah
|
| Huanyu
| 18650
|
| K2 Energy
| LFP18650P - 18650 Power 1.2 Ah; LFP26650P - 26650 Power 2.5 Ah; LFP26650EV - 26650 Energy 3.2 Ah
|
| PHET / Pihsiang Energy Technology
| 18650 - 1.1 Ah
|
| PSI
| 26650
|
| Valence
| IFR18650E - 18650, 1.3 Ah; IFR26650 - 26650, 2.4 Ah
|
General specifications (for detailed specifications, please see the Lithiumate™ Manual).
| Symbol
| Item
| Conditions
| Min
| Nom
| Max
| Units
|
| Vrange
| Cell voltage sensing range
| -
| 2.09
| -
| 4.54
| V
|
| Vaccur
| Cell voltage sensing accuracy
| Within Vrange
| -
| ±10
| ±15
| mV
|
| Isply
| Cell load current
| Stand-by
| -
| -
| 2.0
| uA
|
Active,
1-reading / sec
| -
| 1.5
| 2.0
| mA
|
| Balancing
| -
| 200
| -
| mA
|
| VISOL
| Isolation voltage
| End cell boards
Between battery & low voltage
| -
| 2500
| -
| V
|

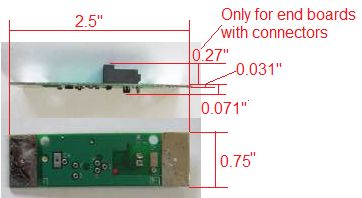

| Item
| Dimensions
|
| PCB width
| 0.75" / 19 mm
|
| PCB Length
| 2.5" / 63.5 mm
|
| PCB thickness (additional thickness of battery, with electronics nested in space between cells)
| 0.031" / 0.8 mm
|
| Thickness w/components, mid-bank board
| 0.071" / 1.79 mm
|
| Connector height, right angle, end board
| 0.27" / 6.8 mm
|
Each bank requires a positive cell board on its most positive cell, a negative cell board on its most negative cell, and mid-bank cell boards in the remaining cells.
(The automatic quote form will select the correct number of each type of board for you.)
Right angle connectors are standard on full bank and end boards.
Versions with straight connectors or without connectors are available with quick turnaround.
Part number: 1SC0100M:
- 1 = Cell Board
- SC = Small Cylindrical
- 01 = 1 cell
- 00 = pitch: n.a.
- M = mid bank (available:M = mid-bank; P = positive end; N = negative end)
Parts in bold are stocked
| Positive end
| Mid-bank
| Negative end
|
| r.a. conn
| no conn
| straight conn
| r.a. conn
| no conn
| straight conn
|
|
|
|
|
|
|
|
| 1SC0100P
| Special order
| 1SC0100M
| 1SC0100N
| Special order
|
| $ 8
| $ 6
| $ 8
|
Prices are listed in the model table, above.
Check stock.
To order, please get a quote.
|
|
