Lithiumate™ - Li-Ion BMS controller & HV Front End

2CN0xxxH BMS controller and High Voltage Front End, enclosed in a metal case

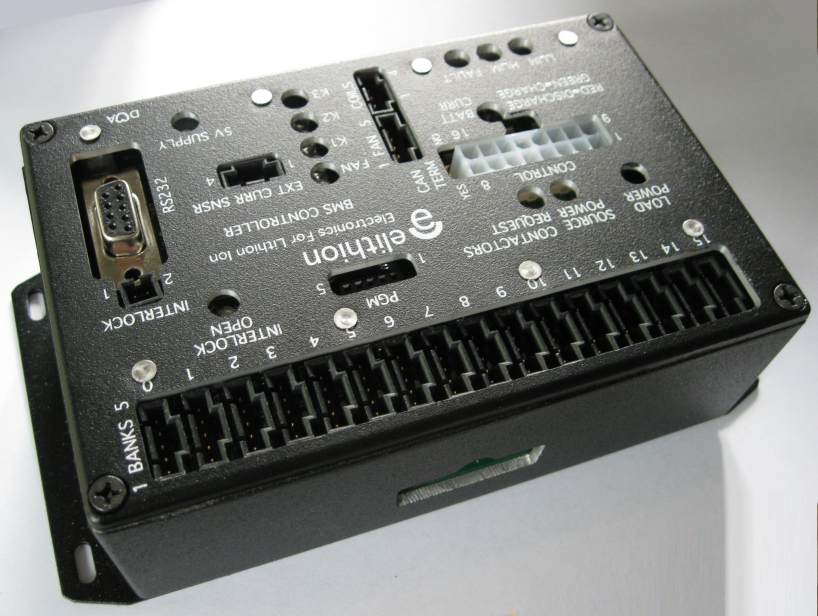

BMS controller with HV Front End. Click to enlarge.

Description

This standard Li-Ion BMS controller performs these functions:

• Manages the cells in the battery pack
• Measures the battery pack current
• Reports the status of the battery pack
• Requests charging and discharging limits
• Drives contactors and handles precharge
• Controls cooling
• Tests for end of precharge and for loss of insulation

This controller includes:

• An HV front End (to test for end of precharge, loss of insulation, with an optional current sensor)
• A metal enclosure
• An on-board current sensor (except the 2CN0000H)

The 2CN0000H controller does not include:

• A current sensor (a cable mounted current sensor is required)

Selection

Specifications

• Lithiumate™ Manual
• Functional description
• Electrical specifications
• CAN bus specifications
• RS232 serial port specifications
• Mechanical specifications
