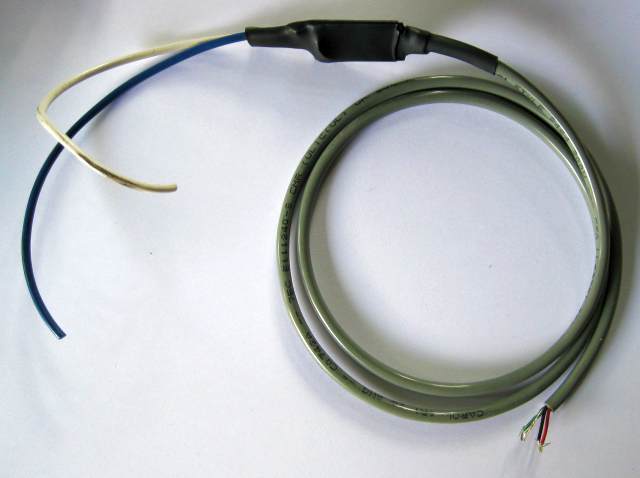

2CS00xxL series current sensors

In-line, 5 A and 20 A, bidirectional current sensors

This low current, bi-directional, in-line current is wired in series with the battery current (such as from a charger).

Its range may not be sufficient for much higher currents (such as to a load). In that case please see the cable mounted current sensors, with currents ranges of 50 to 600 A.

Symbol	Item	Conditions	Min	Nom	Max	Units
Vsply	Supply voltage			5		Vdc
Vofst	Voltage at 0 current			2.5		Vdc
Inom	Nominal current	2CS0005L		5		A
		2CS0020L		20
Imax	Max sensed current	2CS0005L			13	A
		2CS0020L			23
Imax-pk	Max handling peak current	-			60	A
XI-nom	Accuracy	2CS0005L			±75 mA	A
		2CS0020L			±300 mA
Gxfr	Gain	2CS0005L			185	mV/A
		2CS0020L			100
Visol	Isolation voltage			5		kVdc

Item	Value	Units
Board dimensions	1.2 x 0.5 x 0.2 30 x 13 x 5	inch mm
Wire length	1 0.3	feet m
Wire gauge	18 0.82	AWG mm2
Cable length	3 1	feet m

Because the desired cable length is not known a priori, the sensor comes with an unterminated cable. Use these instructions to terminate the cable in the field.

• Blue, 18 AWG: current to be sensed
• White (20 A) or gray (5 A), 18 AWG: current to be sensed
• Red: +5 V - connect to +5V, pin 7 on control connector of BMS controller
• Green: signal out - connect to SrcCur, pin 6 on control connector of BMS controller
• Black: ground - connect to Gnd, pin 1 on control connector of BMS controller
• (White: not used)

Discharge current must flow into the white wire and out of the blue wire.

• Using a macro:
  • Home / Set-up / Preset / Macros / Current sensors / In Line / 5 A or 20 A, as appropriate
• Manually:
  • Home / Set-up / Current sense / Source current (or Load current, as appropriate) / Current sensor / ...
  • ... / Input: 1: from CONTROL conn.
  • ... / Offset: 512 counts
  • ... / Gain:
    • 2CS0005L: 5 [A/V]
    • 2CS0020L: 10 [A/V]

Price: $ 25 when ordered as part of a system.

• ± 5 A: 2CS0005L (gray wire)
• ± 20 A: 2CS0020L (white wire)

To order, please get a quote.
