2CS0xx0K series current sensors

Cable mounted, 50 to 600 A, bidirectional current sensors.

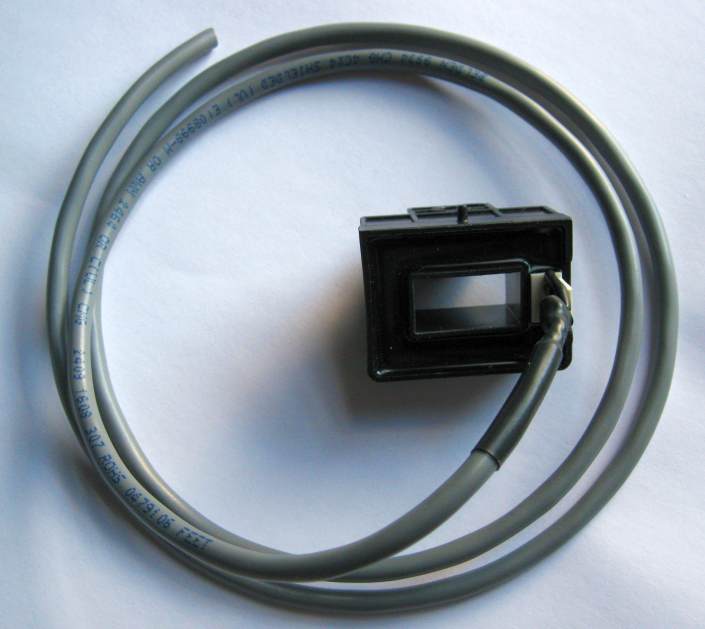

cable-mounted current sensor
Click to enlarge
back to topDescription

This cable-mounted current sensor is slipped on a high current battery cable and connected to a Lithiumate™ BMS controller to detect battery currents (such as the load current) in the range of 50 to 600 A.

Its resolution may not be sufficient for much lower currents (such as from a charger). In that case please see the in-line current sensors, with currents ranges of 5 to 20 A.

Note that some HV Front Ends already include a current sensor.

Compared to other sensors, a cable mounted current sensor:

  • Can handle higher currents
  • Does not drift due to self-heating
  • May simplify the layout of high voltage cabling
back to topSpecifications
Electrical specifications anchor
Symbol Item Conditions Min   Max Units
Inom Nominal current 2CS0050K   50   A
2CS0100K 100
2CS0200K 200
2CS0400K 400
2CS0600K 600
Imax Maximum readable current 2CS0050K   62   A
2CS0100K 125
2CS0200K 250
2CS0400K 500
2CS0600K 750
Isat Saturation current 2CS0050K   150   A
2CS0100K 300
2CS0200K 600
2CS0400K 700
2CS0600K 700
XI-nom Accuracy 2CS0050K     ±0.5 A
2CS0100K ±1
2CS0200K ±2
2CS0400K ±4
2CS0600K ±6
Visol Isolation voltage   2.5   kV

Mechanical specifications anchor

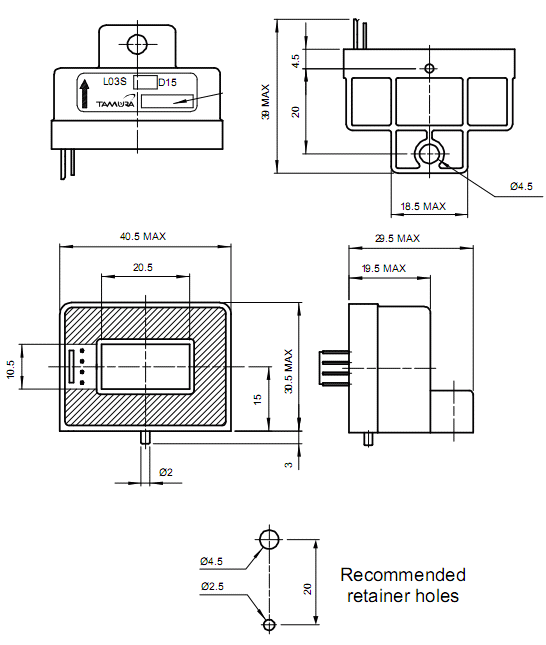

mechanical drawing
Manufacturer specifications anchor

Tamura L03SXXXD15 current sensors. pdf

back to topTermination instructions

Because the desired cable length is not known a priori, the sensor comes with an unterminated cable and a connector kit. Use these instructions to terminate the cable in the field.

Schematic of cable mount current sensor
Schematic of cable mount current sensor
  • Install the current sensor and the BMS controller in their final positions
  • Measure and cut the current sensor's cable to an appropriate length
  • Unclad the cable end 1 inch, careful not to nick the wires
  • Remove the shield foil
  • Strip all 4 wires 1/8 inch
  • Crimp 4 C-Grid female sockets to the wires
  • Slip the sockets in the 4-conductor C-Grid connector, until they snap in place
    1. Red
    2. Green
    3. White
    4. Black and shield bleed wire (uninsulated)
Assembly diagram of cable mount current sensor
Assembly diagram of cable mount current sensor

For replacement parts, see the parts list

back to topInstallation instructions
  • Slip the battery power cable through the opening in the current sensor, so that, when discharging, current flows into the side that has the signal cable (note that the arrow printed on the label is the direction of discharging current)
  • If the cable is too large for the opening on the sensor:
    • Install the current sensor on a copper bus bar, and connect the battery cable to the bus bar, or
    • Strip the cable, run the copper strands inside the sensor, isolate the strands with heat shrink tubing
  • Connect the signal cable to the BMS controller (4-pin, black connector)

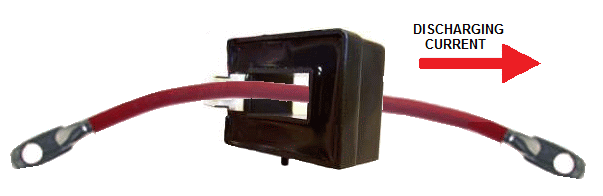

Direction of current in current sensor
Direction of current in current sensor
back to topOrdering

Price: $ 50 when ordered as part of a system.

  • ± 50 A: 2CS0050K
  • ± 100 A: 2CS0100K
  • ± 200 A: 2CS0200K
  • ± 400 A: 2CS0400K
  • ± 600 A: 2CS0600K

To order, please get a quote.
