2HV0xxxB series HV Front Ends

Lithiumate™ local High Voltage Front End, board level

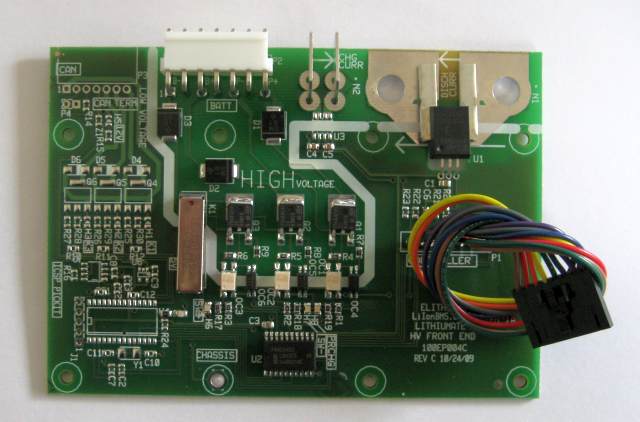

Board level, local HV Front End

Description

This optional, Remote High Voltage Front End, may be connected directly to a BMS controller, to add certain testing before turning on contactors:

• Absence of current leakage between battery and chassis
• Presence of battery voltage
• Contactors are operational
• End of precharge inrush current pulse

Includes a battery current sensor (except the 2HV0000B): 5, 20, 50, 100 or 200 A.

A separate HV Front End:

• Keeps the high voltage away from the BMS controller
• Keeps any electrical noise away from the BMS controller
• May simplify the layout of high voltage cabling

This Remote HV Front End communicates with the BMS controller through short, 8-wire cable (as opposed to the remote HVFEs - 2HR0xxxX - , which do so through the CAN bus).

Note that the 2CN0xxxH controllers already include a High Voltage Front End within their enclosures.

Specifications

General specifications:

Symbol	Item	Conditions	Min	Nom	Max	Units
Vbatt-max	Battery voltage	Precharge and leak tests in use			800	Vdc
		Precharge and leak tests not used			1.1	kVdc
Visol	Isolation voltage	Battery to chassis			2.5	kVac
Vbatt	Battery voltage	Precharge and leak tests in use	18		750	Vdc
		Precharge and leak tests not used	3.2		1100
Ibatt	Battery current linear range	2HV0000B	N.A.
		2HV0005B	-5		5	A
		2HV0020B	-20		20
		2HV0050B	-50		50
		2HV0100B	-100		100
		2HV0200B	-200		200
	Current sensor tolerance			1		%
IHV-leak-on	HV isolation test current	Isolation test in progress		2.7	5.0	mA

For detailed specifications, please see the Lithiumate™ Manual.

Ordering

Prices listed below: when ordered as part of a system.

PN	Current sensor	Price
2HV0000B	-	$ 116
2HV0005B	±5 A	$ 126
2HV0020B	±20 A
2HV0050B	±50 A
2HV0000B	±100 A
2HV0200B	±200 A

To order, please get a quote.
