6DS0003K - SOC display

Battery status display module with LED bar graph and CAN Bus interface

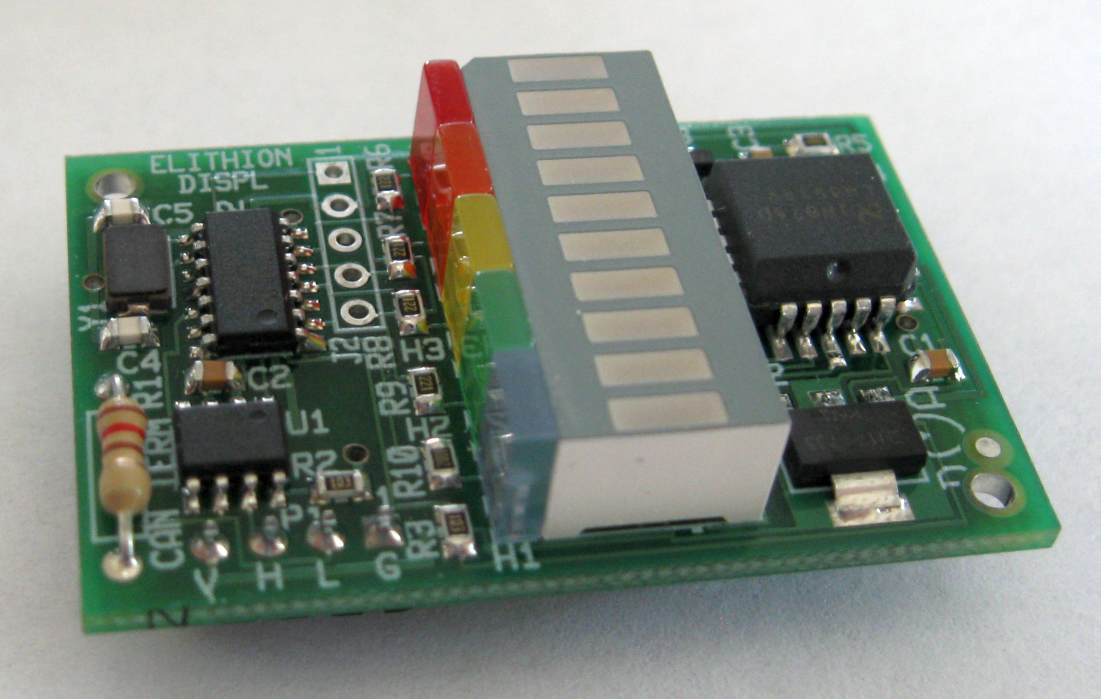

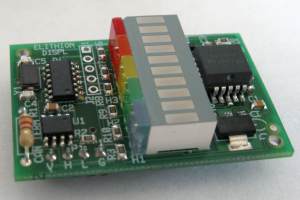

SOC display. Click to enlarge

Description

This standard Battery Status display module includes:
• A 10-LED bar graph to indicate State Of Charge (SOC)
• Five separate status LEDs
Communication is through the CAN bus
The small module is ready to be installed behind a panel.
It requires a nominal 12 Vdc supply to operate.

The SOC display is connected to the CAN bus and a 12 V power source through a 4-pin connector.

Specifications

If used with an Elithion BMS controller, the standard behavior of the display is:

• The LED bar shows the SOC, in 10 % increments:
• The five LEDs indicate the state of the BMS:
  •     Red= Fault (e.g.: plugged in while trying to drive off) {In Rev 1.05+, it is also lit in case of warning}
  •     Amber = Current limited (reduced charging or discharging limit)
  •     Yellow = Load is on (e.g.: ignition is on)
  •     Green = Enabled (contactors are on, if used)
  •     Blue = Source is on (e.g.: plugged in to charge)

• Electrical specs
• CAN bus specs
• Mechanical specs

Ordering

• Part Number: 6DS0003K
• Price: $ 70 when ordered as part of a system.

To order, please get a quote.
