Lithiumind™

Simple, 1-board Battery Management System (BMS) for standard Li-Ion, LifePO4 and LiPo cells

Lithiumind BMS
Click to enlarge
back to topDescription

This Battery Management System provides basic BMS functionality for small batteries in cost sensitive consumer products, such as e-bikes and e-motorcycles.

Highlights anchor
Lithiumind BMS connection to cells
  • For small battery packs: between 8 and 24 cells in series
  • Standard cobalt, LiPo and LiFePO4
  • Centralized topology: a single board has n+1 wires ("spaghetti") going to n cells.
  • "Bullet proof": not damaged by:
    • Miswiring, in any combination
    • Break in power wires, even under load
    • Misplugging
    • Thermocouple short to cell
  • Simple analog technology
  • Significantly lower cost than a sophisticated BMS
  • Significantly higher performance than other simple BMSs and Chinese protectors
  • Self powered (from battery)
  • Potted PCB assembly
Functions anchor
  • Battery protection:
    • Under and over cell voltage limit, field adjustable
    • Low voltage reserve, field adjustable
    • Under and over temperature limit
    • Over current limit
  • Battery enhancement:
    • Dissipative balance (at the 100 % SOC end), field adjustable
  • Battery monitor:
    • 50 A current sensor (expandable)
    • Fuel gauge (SOC)
  • Control:
    • Charger shut-off
    • Motor driver shut-off, including interlock when still plugged in the wall
    • Throttle back-off when in reserve
Display anchor
LCD display
  • LED display:
    • Power, status
    • Individual LEDs for each balance load available as special order
  • Text display (optional):
    • Serial port for laptop or LCD display (not included)
    • Pack voltage, current, SOC; cell min and max voltages; status, etc.
    • On board supply for LCD display available as special order

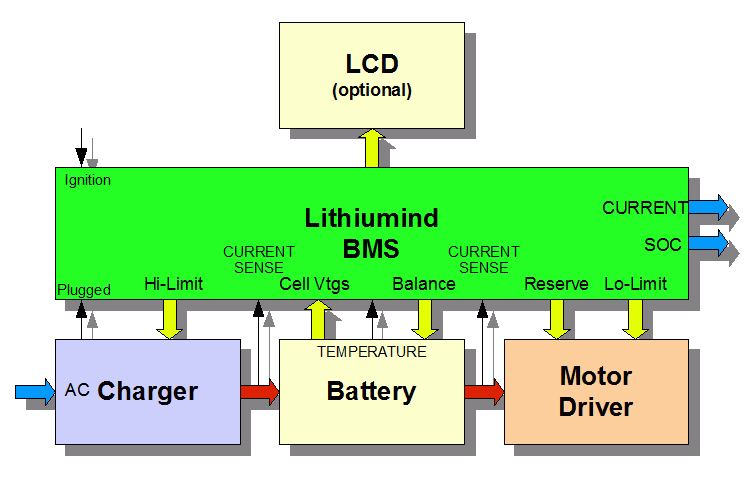

Lithiumind BMS, block diagram
Limitations anchor
  • This is not a sophisticated, digital BMS: it cannot report individual cell voltages and temperatures
  • This is not a "protector": does not include a power switch to interrupt the battery current
  • It is not possible to stack-up multiple BMS units to handle more cells in series
back to topAdjustments

The BMS has 4 screwdriver adjustments:

  • Maximum cell voltage, above which it shuts off the charger
  • Balance cell voltage, above which it turns on a cell's balancing load
  • Reserve cell voltage, below which it cuts back available throttle range
  • Minimum cell voltage, below which it turns of the motor driver

The range of these adjustments is appropriate for various Lithium cell chemistries.

back to topWiring

Every application is different, so we can only provide one example here.

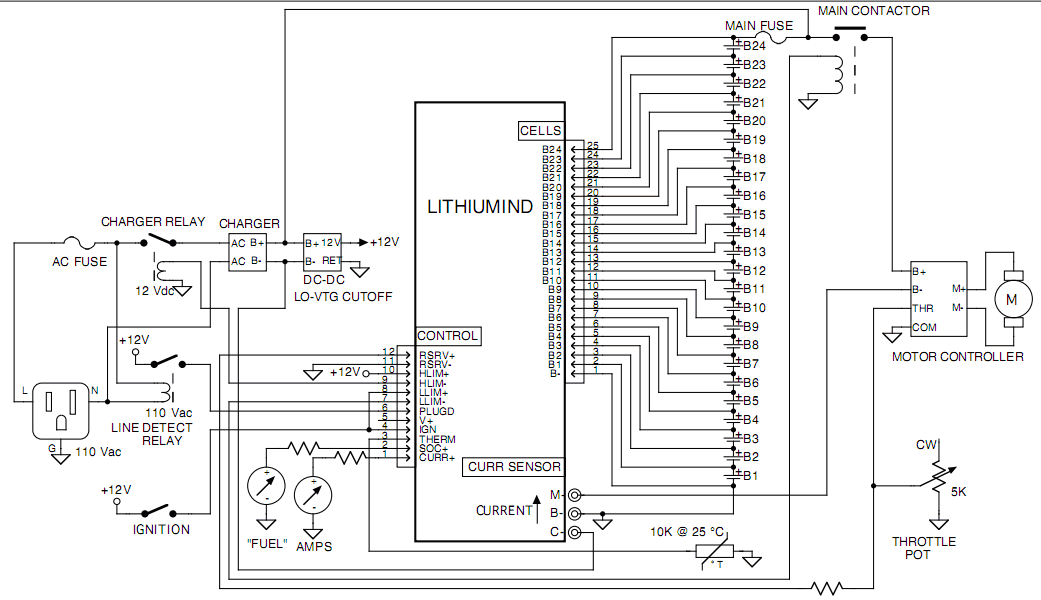

Suggested Schematic Diagram
Example for an e-bike with a 12 V DC-DC converter and a motor controller that requires a contactor.

The BMS has a 2-piece terminal block for safe connection to the cells:

  1. Remove the terminal block's plug from the BMS
  2. Wire cells to plug
  3. Measure the voltages on plug to confirm proper wiring
  4. Reconnect the plug to the BMS

While it is possible to reduce the height of the product (to about 0.5") by clipping off the terminal block plug and soldering wires directly to the PCB, this is a dangerous practice and will void any warranty.

back to topSpecifications

These are simplified specifications.
Detailed specifications are in the manual

Cell voltages anchor
Symbol Item Conditions Min Nom Max Units
Vcell Cell voltage Normal 2.0 - 4.5 Vdc
Miswired, no damage -100 - 100
Vchgr-off Charger off voltage adjustment 3.5 4.2 Vdc
Vbalance Balance voltage adjustment 3.5 4.2 Vdc
Vreserve Reserve voltage adjustment 2.0 3.5 Vdc
Vmotor-off Motor off voltage adjustment 2.0 3.5 Vdc
Battery current anchor
Symbol Item Conditions Min Nom Max Units
Iload Motor driver current sense Continuous 0 50 Adc
Peak, 10 s 125
Peak, 100 s 90
Icharger Charger current sense 0 50 Adc
Idrain Battery drain current Power on 3 mA
Power off 5 µA
Ibalance Balance current 3.6 Vcell 200 mAdc
4.2 Vcell 310 mAdc

By building your own current divider, you can extend the current sensing range, such as to 100 A continuous, 250 A peak.

Temperature sensor anchor

The user must provide a leaded thermistor, to sense the battery temperature.
Symbol Item Conditions Min Nom Max Units
Rtherm Resistance 10 kΩ @ 25 °C
B25/50 Curve NTC 3380K -
Toltherm Tolerance 3 %

While the BMS will operate if a 10 kΩ resistor is substituted for the thermistor, it will not protect the battery from over-temperature.

Monitor outputs anchor
Symbol Item Conditions Min Nom Max Units
VSOC SOC output voltage 0 % SOC 0 V
50 % SOC 2.5
100 % SOC 5
VAMPS AMPS output voltage 25 mV / A

Current output is positive both while charging and discharging.

Serial port anchor
Symbol Item Conditions Min Nom Max Units
Type TTL levels
TX only
Output LCD module 4 lines x 20 characters
Terminal emulator 24 lines x 80 characters
Control outputs anchor
Symbol Item Conditions Min Nom Max Units
Vout Max output voltage HLIM, LLIM 60 Vdc
Iout Max output current HLIM, LLIM 0.7 Adc
Operating conditions anchor
Symbol Item Conditions Min Nom Max Units
Vsupply Supply voltage 8 - 108 Vdc
Tamb Ambient temperature Operating -40   85 °C
Mechanical anchor

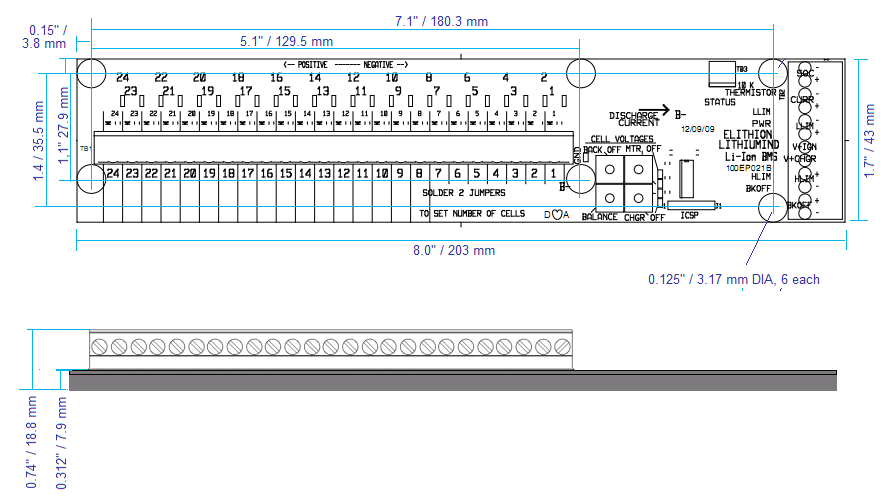

Mechanical dimensions
Dimensions 8 x 1.4 x 0.74 " / 203 x 43 x 18.8 mm
Mass 131 g
Weight 4.62 oz
back to topProgramming
  • The number of cells is programmed with a soldering iron, by making a solder bridge between adjacent pads corresponding to the number of cells in series
  • The cell voltage thresholds are adjusted with a small screwdriver, while measuring the voltage of a test point with a voltmeter
back to topOperation
Adjustments graph
Function of adjustments

BMS operation based on these settings:

  • The charger is on until the voltage of the most charged cell reaches the MAX voltage; it remains off until all cells are below the BALANCE voltage, at which point it comes back on
  • A cell's balance load is on whenever its voltage is above the BALANCE voltage
  • The Reserve output is on as long as the voltage of the least charged cell is below the RESERVE voltage
  • The motor is on until the voltage of the least charged cell drops below the MIN voltage; it remains off until all cells are above the RESERVE voltage, at which point it comes back on
back to topOrdering

Not yet in production

Production quantities expected in July.
Please pre-order samples through a reseller.

Small orders through resellers anchor

To order a small quantity of Lithiumind BMSs, 24 cells (can be used with any number of cells up to 24), please contact one of our resellers.

(These resellers have placed orders, but have no stock yet: Alliance)
Model Number
of cells
Manufacturer Suggested Retail Price [USD]
7SB0024B 8~24 -

For systems bought through a reseller, tech support is provided by the reseller, while Elithion offers paid tech support.

Large and direct orders anchor

To order a large quantity of Lithiumind BMS directly from Elithion, for a specific number of cells in series (anywhere between 8 and 24 cells), please note the prices listed below and then please contact us

Price each: ($ 130 + $ 4 / cell) + $ 1000 / number of units
Price per order: ($ 130 + $ 4 / cell) * number of units + $ 1000

For example:
Model Number
of cells
Price each [USD]
1 ea. 3 ea. 10 ea. 30 ea. 100 ea. 300 ea. 1000 ea. 3000 ea.
7SB0008B 8 1172 505 272 205 182 175 173 172
7SB0012B 12 1188 531 288 221 198 191 189 188
7SB0016B 16 1204 537 304 237 214 207 205 204
7SB0020B 20 1220 553 320 253 230 223 221 220
7SB0024B 24 1236 569 336 269 246 239 237 236

Once production starts, typical delivery times are expected to be 30 days from date of order for up to 100 units, 60 days for more than 100 units.

Elithion provides free tech support to direct clients.
