Lithiumate™ Cell Boards for large prismatic cells
Standard Cell Boards matched to large Li-Ion cells

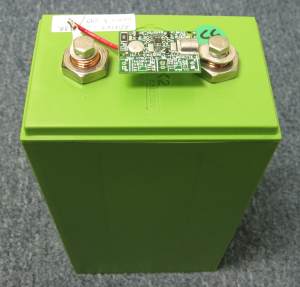

Cell board of K2 prismatic.
|
- One Cell Board per cell: a Cell Board is mounted to the terminals of a single cell, any arrangement
- Reliable mechanical mounting and direct electrical connection
- A single communication wire is used between adjacent cells in a bank
|
- Possible bank arrangements:
- Two-cell bank: use a "positive end" and a "negative end" cell boards
- Three or more cell bank: use a "positive end", n-2 "mid-bank", and a "negative end"
- Right angle connectors are standard on end boards. Versions with straight connectors or without connectors are available with quick turnaround
- With right angle connectors - requires a slight extra mounting space beyond the cell bolts
- With straight connectors - requires significant extra mounting space beyond the cell bolts
- Without connectors (cables to the BMS controller are soldered directly to the cell board) - requires no extra space beyond the cell bolts
- For example, part number: 1PR0064M:
- 1 = Cell Board
- PR = Prismatic
- 0064 = 64 mm max terminal spacing (center-to center spacing of the rings terminals) (available: 53 to 210 mm)
- M = mid bank (available: P, M, N)
Parts in bold are stocked.
See the wiring instructions.
Power connections:
- Connection to the positive terminal of the cell is through the ring terminal on the red wire
- Connection to the negative terminal of the cell is through the ring terminal on PCB
Signal connections:
- Signal connection between adjacent cell boards is through the gray and orange wires (in rev B parts, it is done by soldering a wire between the C+ and C- pads)
- Signal connection to the BMS controller is through two 2-pin connectors, one to the positive end board (red and black wires) and one to the negative end board (white and green wires)

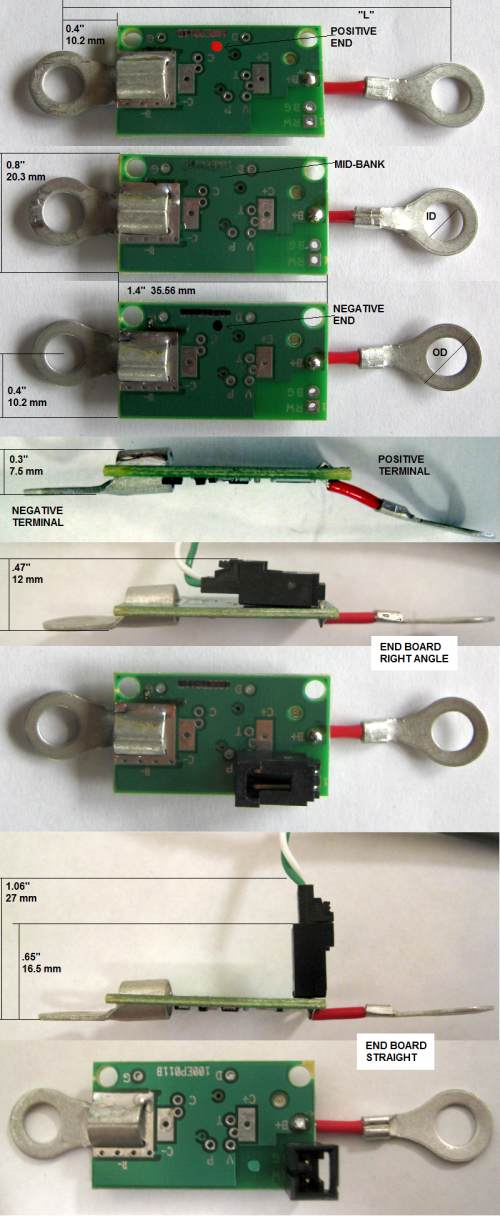

Prismatic cell board mechanical dimensions.
Common specifications:
| Item
| Label
| Nom
|
| PCB Width
| W
| 0.8" / 20.3 mm
|
| Ring terminal location
| W1
| 0.4" / 10.1 mm
|
| PCB Length
| L
| 1.4" / 35.56 mm
|
| PCB thickness
| t
| 0.062" / 1.6 mm
|
| Overall height, no connector
| H1
| 0.3" / 7.5 mm
|
| Overall height, w/ right angle connector
| H2
| 0.47" / 12 mm
|
| Overall height, w/ straight connector
| H3
| 0.65" / 16.5 mm
|
| Overall height, w/ str conn & mate
| H4
| 1.06" / 27 mm
|
| Terminal material
| -
| Plated copper
|
| Wire gauge
| -
| 18 AWG
|
Right angle connector is standard on positive and negative end cell boards. Mid-bank cell boards do not have a connector.
Specifications particular to each model with terminals:
| P/N
| Terminal center-to-center spacing
| Max bolt
size
| Ring term
|
| Min
| Max 'L'
| ID
| OD
|
| 1PR0064x
| 2.3" / 58 mm
| 2.5" / 64 mm
| 1/4" / M6
| 0.25" / 6.3 mm
| 0.48" / 12 mm
|
| 1PR0106x
| 4.17" / 106 mm
| 5/16" / M8
| 0.312" / 8 mm
| 0.59" / 15 mm
|
| 1PR0146x
| 5.75" / 146 mm
| 3/8" = 0.375" / M10
| 0.390" / 9.9 mm
| 0.59" / 15 mm
|
| 1PR0210x
| 8.27" / 210 mm
| 5/8" = 0.625" / M16
| 0.656" / 16.66 mm
| 0.125" / 31.75 mm
|
| 1PR0240x
| 9.45" / 240 mm
| 5/8" = 0.625" / M16
| 0.656" / 16.66 mm
| 0.125" / 31.75 mm
|
Specifications particular to plain cell boards without terminals:
| Slots for ring terminal
| Hole for wire to ring terminal
|
For 8 AWG terminal
2 x 0.050 x 0.350", 0.235" apart
2 x 1.27 x 8.9 mm, 5.97 mm apart
| For 18 AWG wire
0.052" ID
1.3 mm ID
|
On cell board
- Straight: Molex 70543-0001, 2-pin male C-Grid SL, straight, gold
- Right angle: Molex 70553-0001, 2-pin male C-Grid SL, right angle, gold
On cable
|
|
Cell board selector
