CAN BUS termination

For a CAN bus subjected to extremely high levels of electrical noise

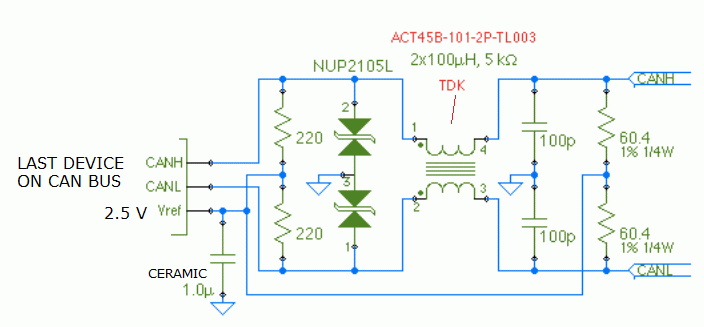

Schematic diagram
Split termination with mid-point hard clamped to 2.5 V
This one may help only the device at the end of the bus

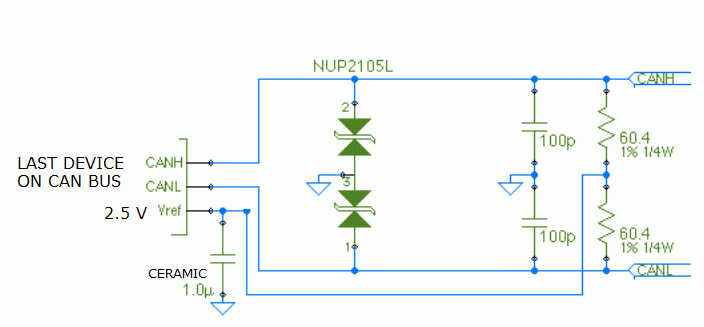

Schematic diagram
Split termination with mid-point hard clamped to 2.5 V
This one may help all the devices on the bus, if the noise is capacitively coupled
